型号:TC-15T | Model: TC-15T |
|
组成部分: 15" 中低频单元 / 1.5" 高音压缩驱动单元 | Components | :15" driver/1.5" compression driver |
最大声压级(1米, 自由场)1 : 134 dB SPL | Max. sound pressure (1m, free field)1 : 134 dB SPL |
功率(有效值 / 10毫秒峰值) : 200 / 800 瓦 | Power handling capacity (RMS/peak 10 ms) | : 200/800 W |
频率响应 (-5 dB) : 68 Hz - 18 kHz | Frequency response (-5 dB) | : 68 Hz - 18 kHz |
指向特性(水平 x 垂直) : 75° x 40° | Nominal dispersion angle (h x v) | : 75° x 40° CD2 |

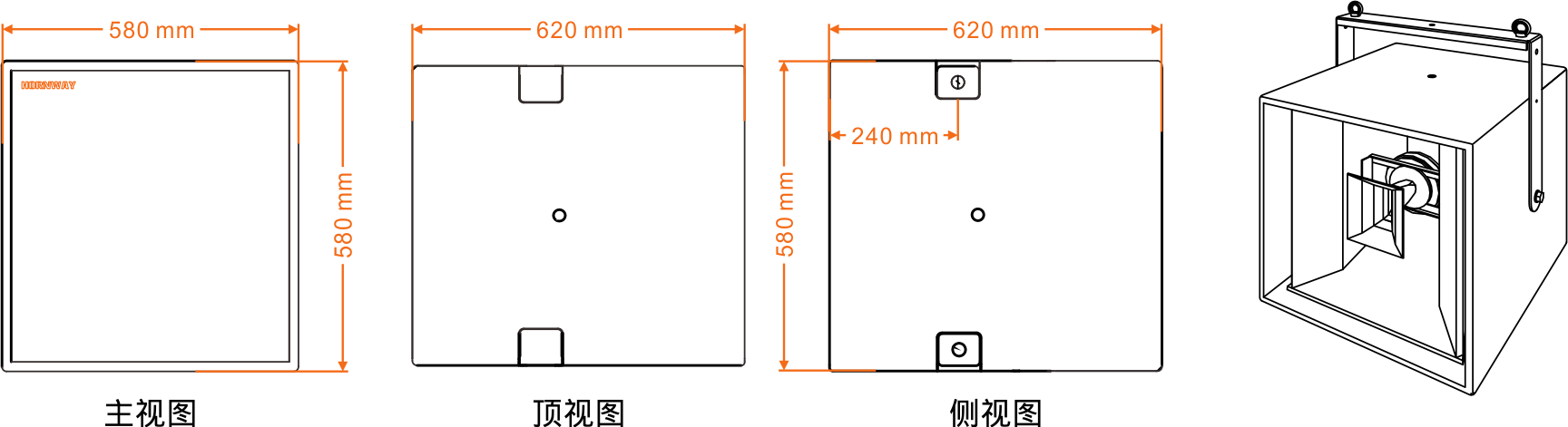

尺寸 毫米 (高 x 宽 x 深) : 580 x 580 x 6203 | Dimensions mm (H x W x D) | : 580 x 580 x 6203 |
重量 公斤:52 | Weight kg | : 52 |
尺寸 英寸 (高 x 宽 x 深) : 22.8 x 22.8 x 24.43 | Dimensions inch (H x W x D) | : 22.8 x 22.8 x 24.43 |
重量 磅: 117 | Weight lb | : 115 |
|
|
|
1 最大峰值声压级测试信号:峰值因数为4的粉噪 | 1 SPL max peak test signal: pink noise with crest factor 4 |
2 ≥ 600 Hz | 2 ≥ 600 Hz |
|
3 规格尺寸不包含滑轮 | 3 dimensions without wheels |
|
